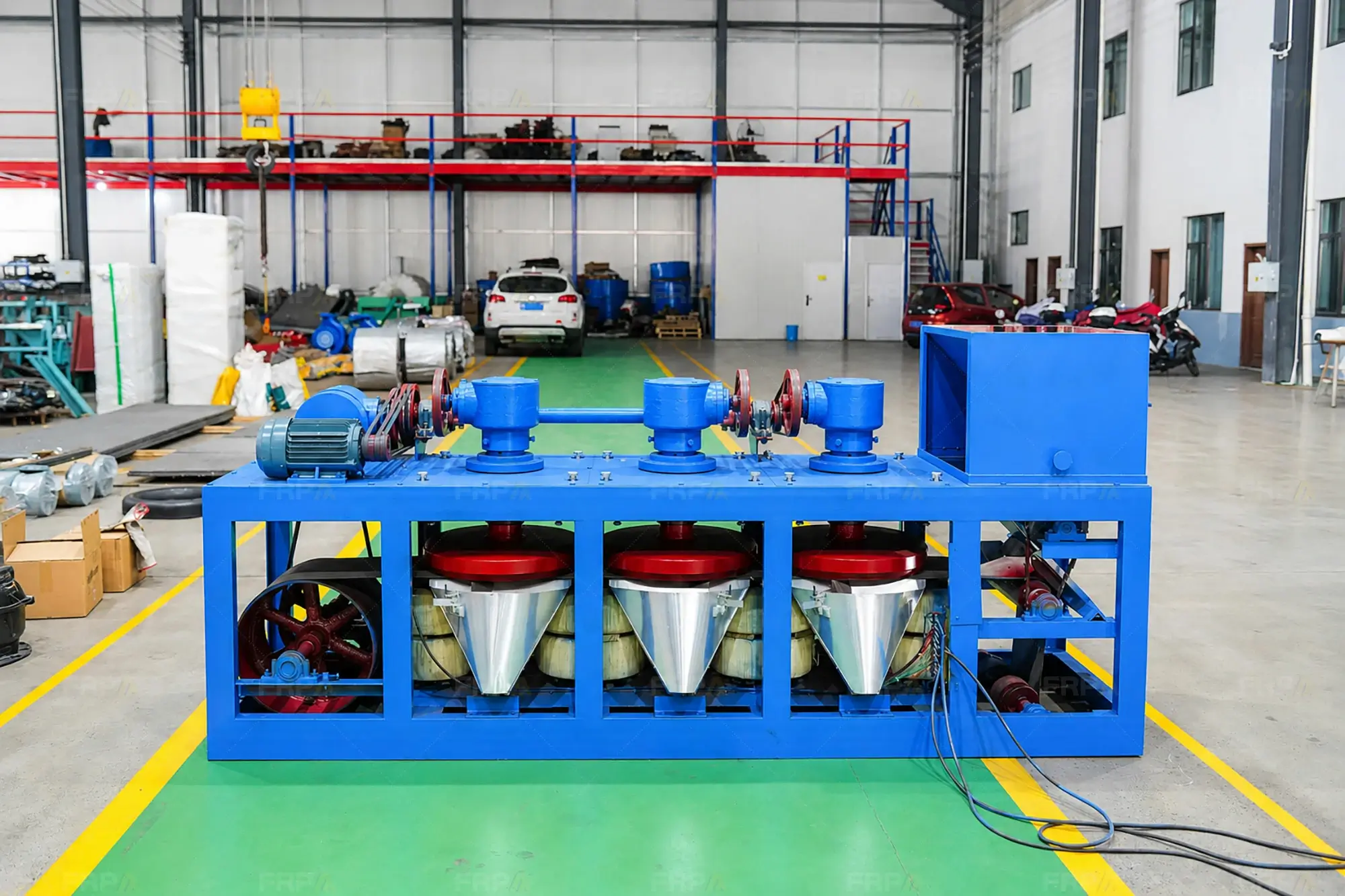

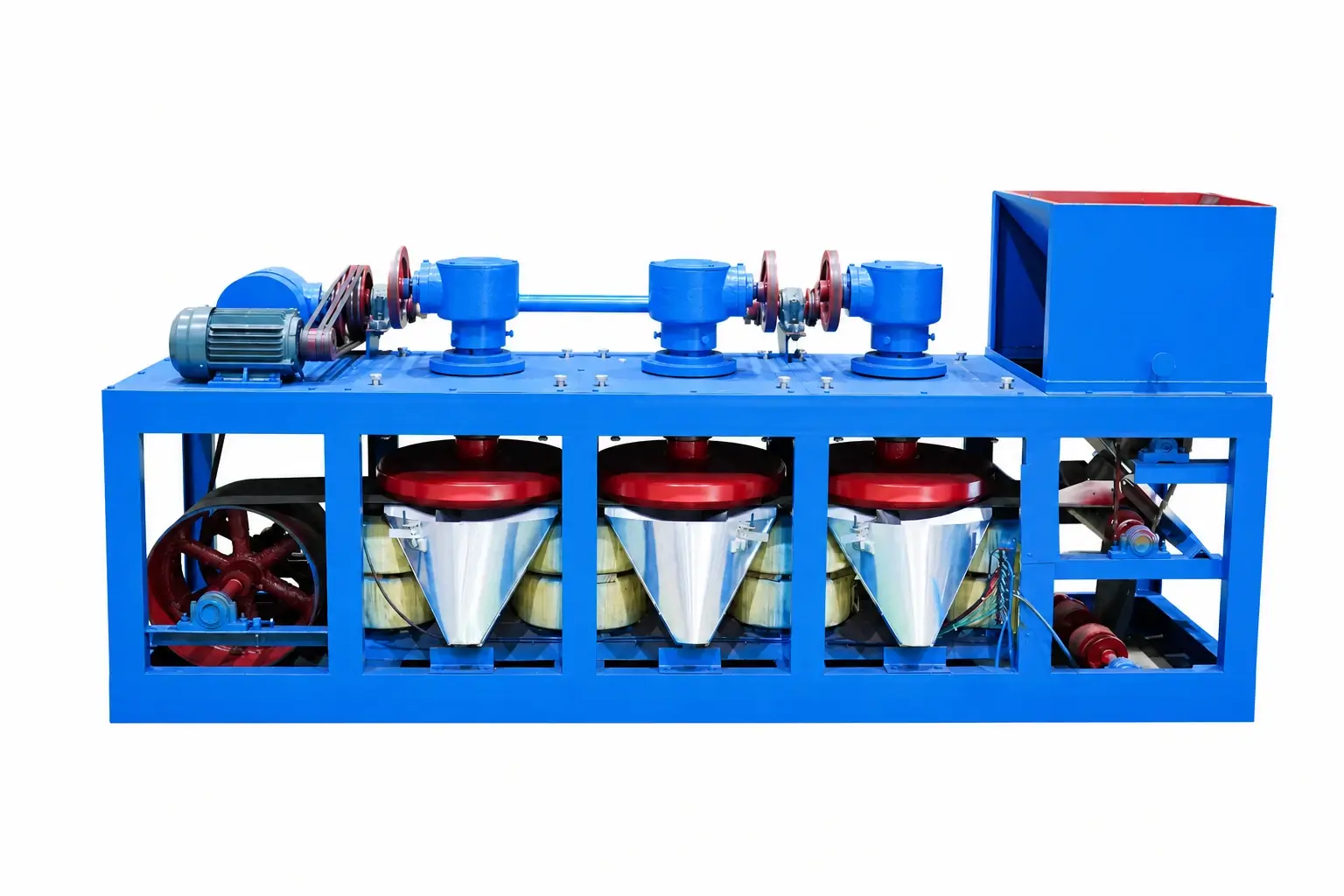

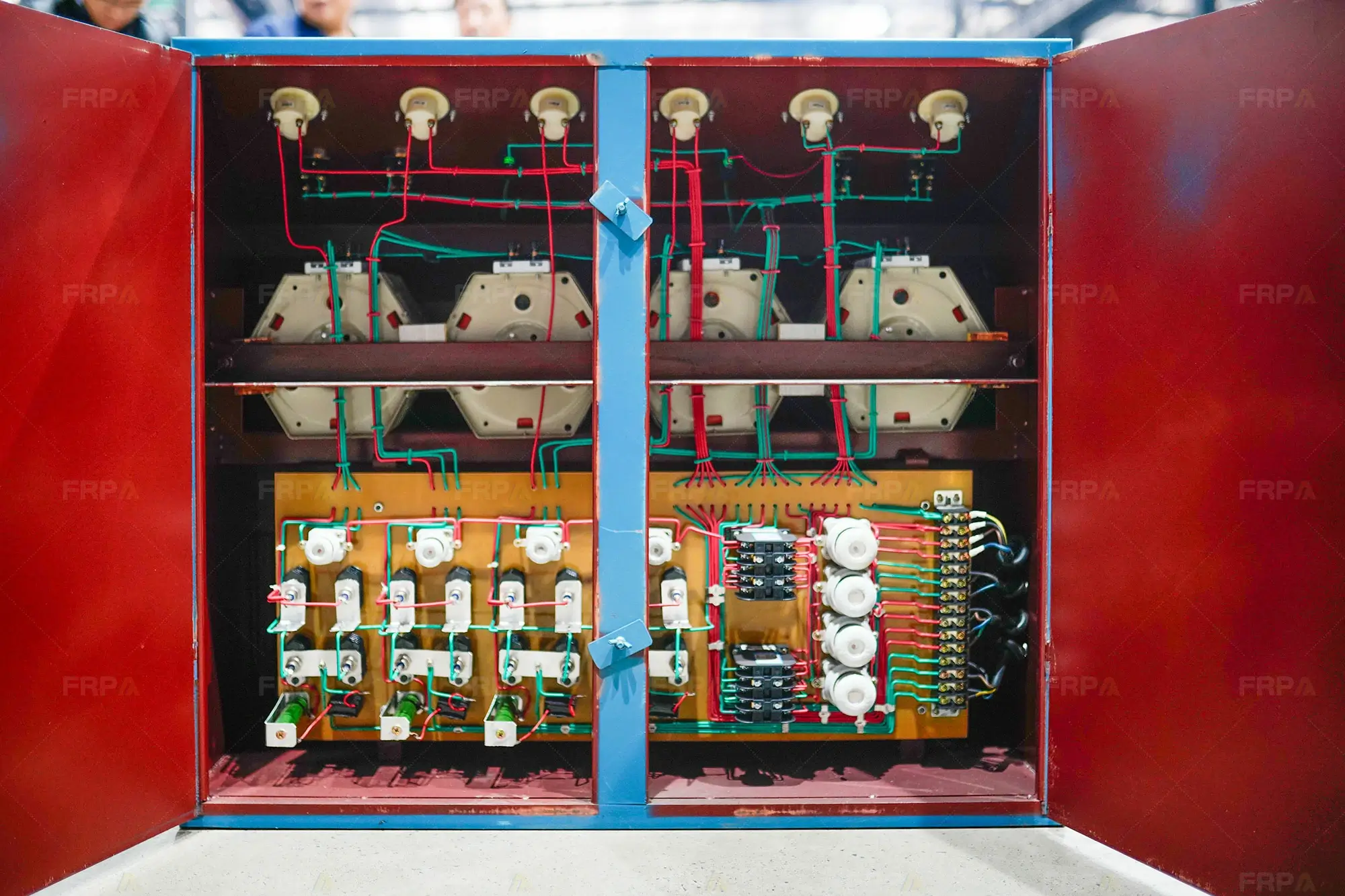

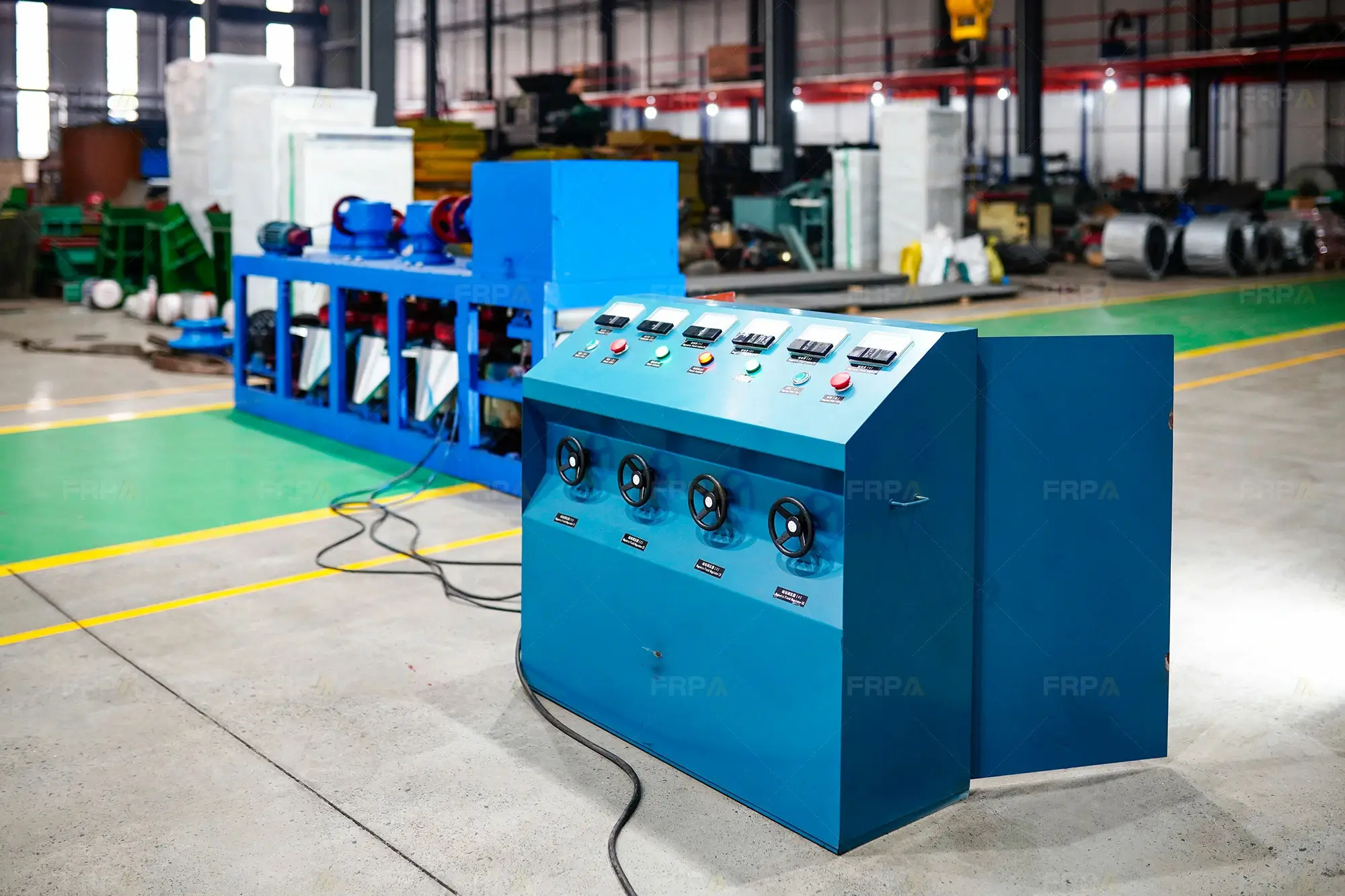

The Three-Disc Magnetic Separator is a high-intensity, high-gradient dry magnetic separation system designed for the selective recovery of weakly magnetic and rare metallic minerals.

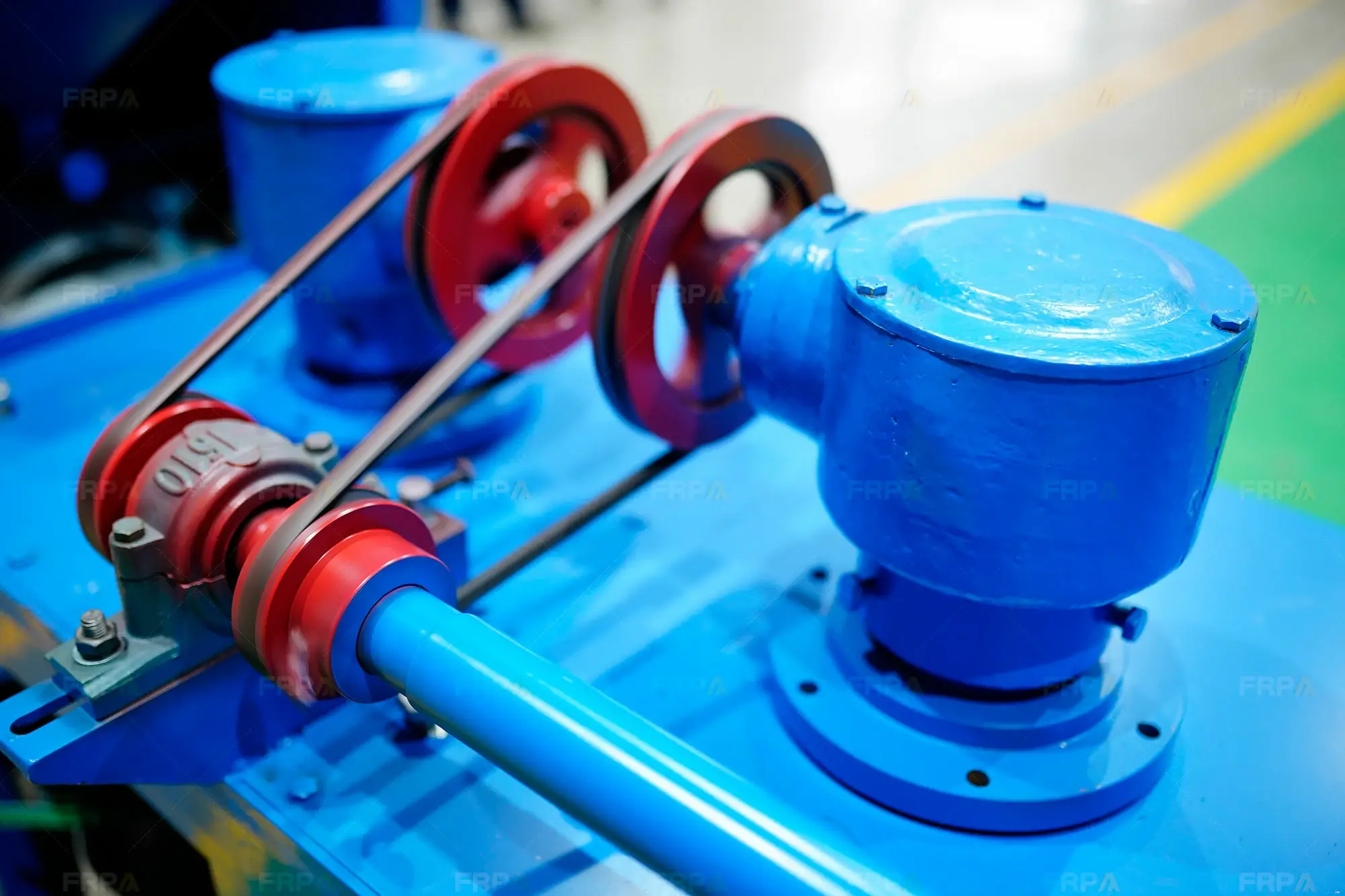

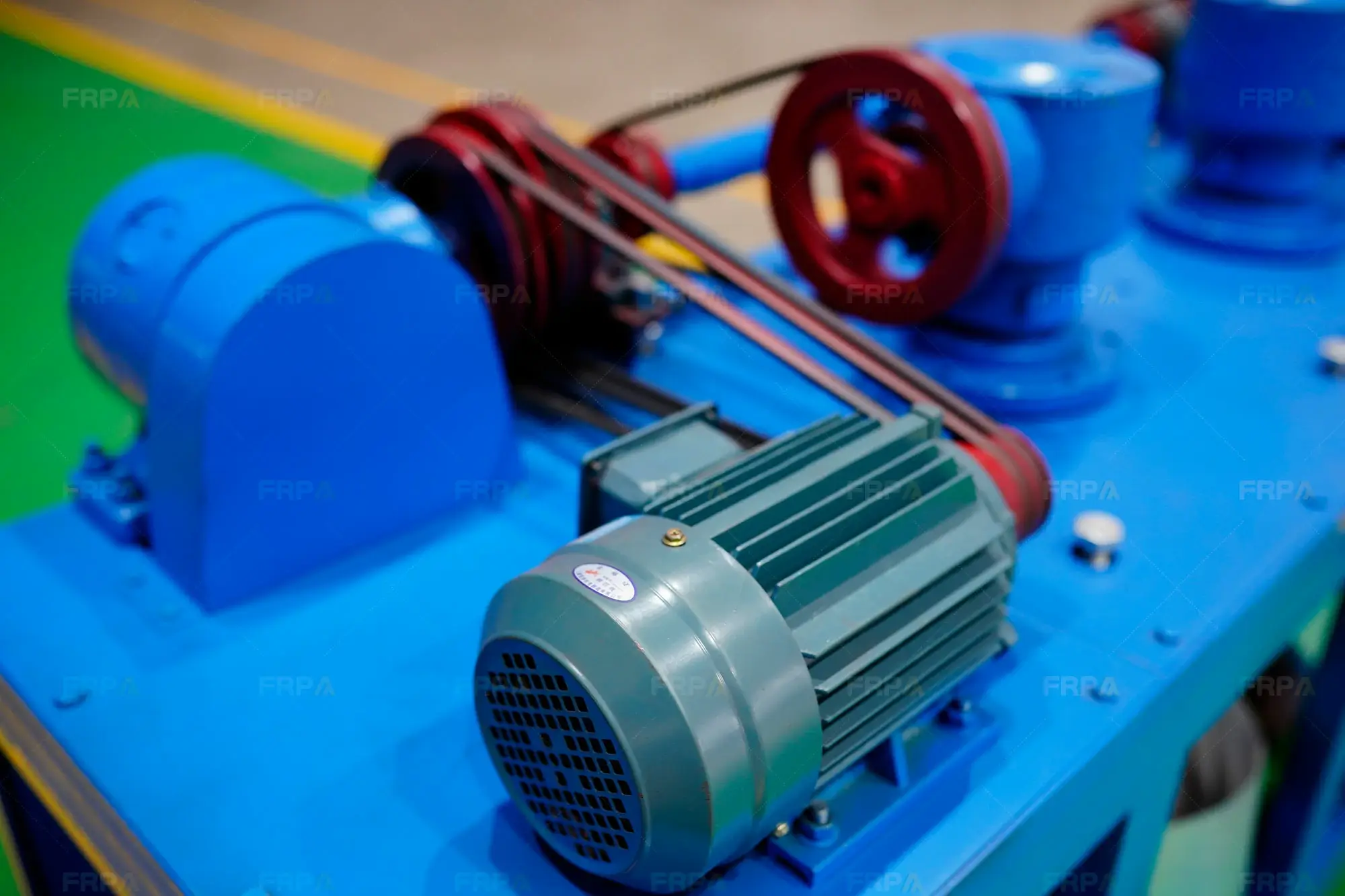

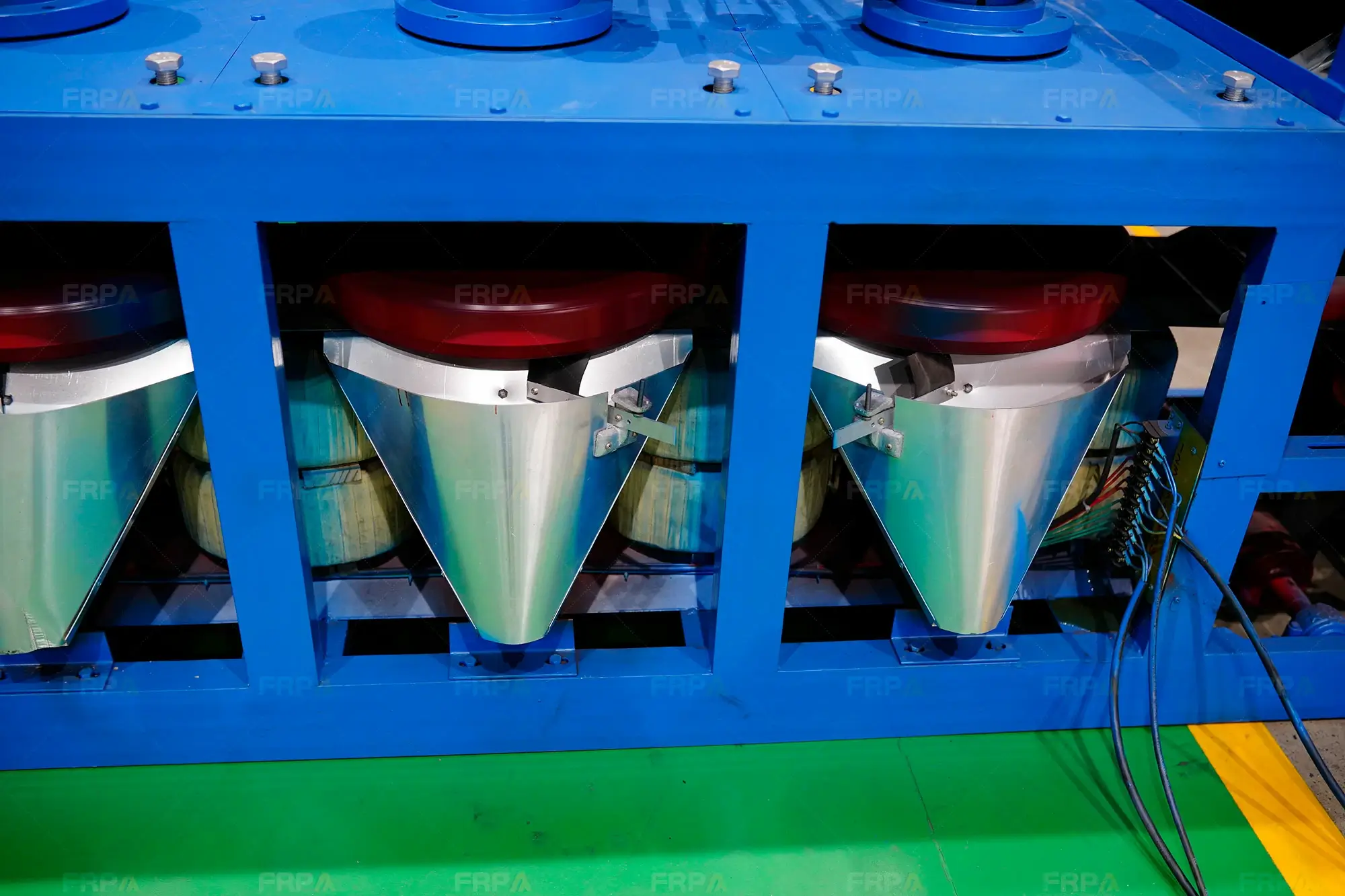

Engineered for precision, the system integrates three independently controlled magnetic discs, enabling staged separation through adjustable magnetic field intensity, disc spacing, and belt speed.
Typical Target Minerals：
*Wolframite, cassiterite (tin ore)
*Tantalite, columbite (Nb-Ta ores)
*Ilmenite, chromite, manganese ore
*Zircon, monazite, garnet
Concentration and Upgrading of Metallic Minerals：Dry concentration of weakly magnetic and rare metallic minerals such as ilmenite, garnet, monazite, wolframite–manganese ore, columbite, and tantalite.
Separation of Magnetic and Non-Magnetic Materials：Separation of magnetic metals from non-magnetic ones and removal of weakly magnetic particles from non-metallic ores.
Purification of industrial and non-metallic materials, including iron removal from quartz for glass and optical applications, separation of iron oxides from feldspar to improve whiteness for ceramics and glass production, and purification of abrasives such as garnet through removal of magnetic contaminants.
Separation of heavy mineral concentrates, including garnet and monazite; upgrading and recovery of ilmenite from cassiterite and mixed concentrates; effective separation of wolframite, scheelite, manganese ore, and cassiterite; as well as purification of columbite–tantalite concentrates.
FAQ for Three-Disc Magnetic Separator
Provide your feed size, mineral composition, and capacity, and our engineers will recommend the most suitable configuration
| Model | Type | Belt Width (mm) | No. of Discs | Magnetic Intensity (Gauss) | Capacity (t/h) | Feed Size (mm) | Motor Power (kW) | Weight (kg) | Dimensions (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 3PC-500 | Laboratory | 500 | 3 | 0–20,000 | 0.05–0.2 | <2 | 1.5 | 250 | 900×600×1100 |
| 3PC-800 | Industrial | 800 | 3 | 0–20,000 | 0.5–1.2 | <2 | 3.0 | 520 | 1500×1100×1500 |
| 3PC-1000 | Industrial | 1000 | 3 | 0–20,000 | 1.0–2.5 | <3 | 4.0 | 680 | 1700×1200×1600 |
| 3PC-1200 | Industrial | 1200 | 3 | 0–20,000 | 2.0–4.0 | <3 | 5.5 | 900 | 1900×1300×1750 |
Note: Specifications are subject to change without notice due to ongoing product improvement.
