Minimal Over-Crushing
Unlike impact crushers, the compression mechanism produces a cleaner product size distribution with drastically reduced fine powder.

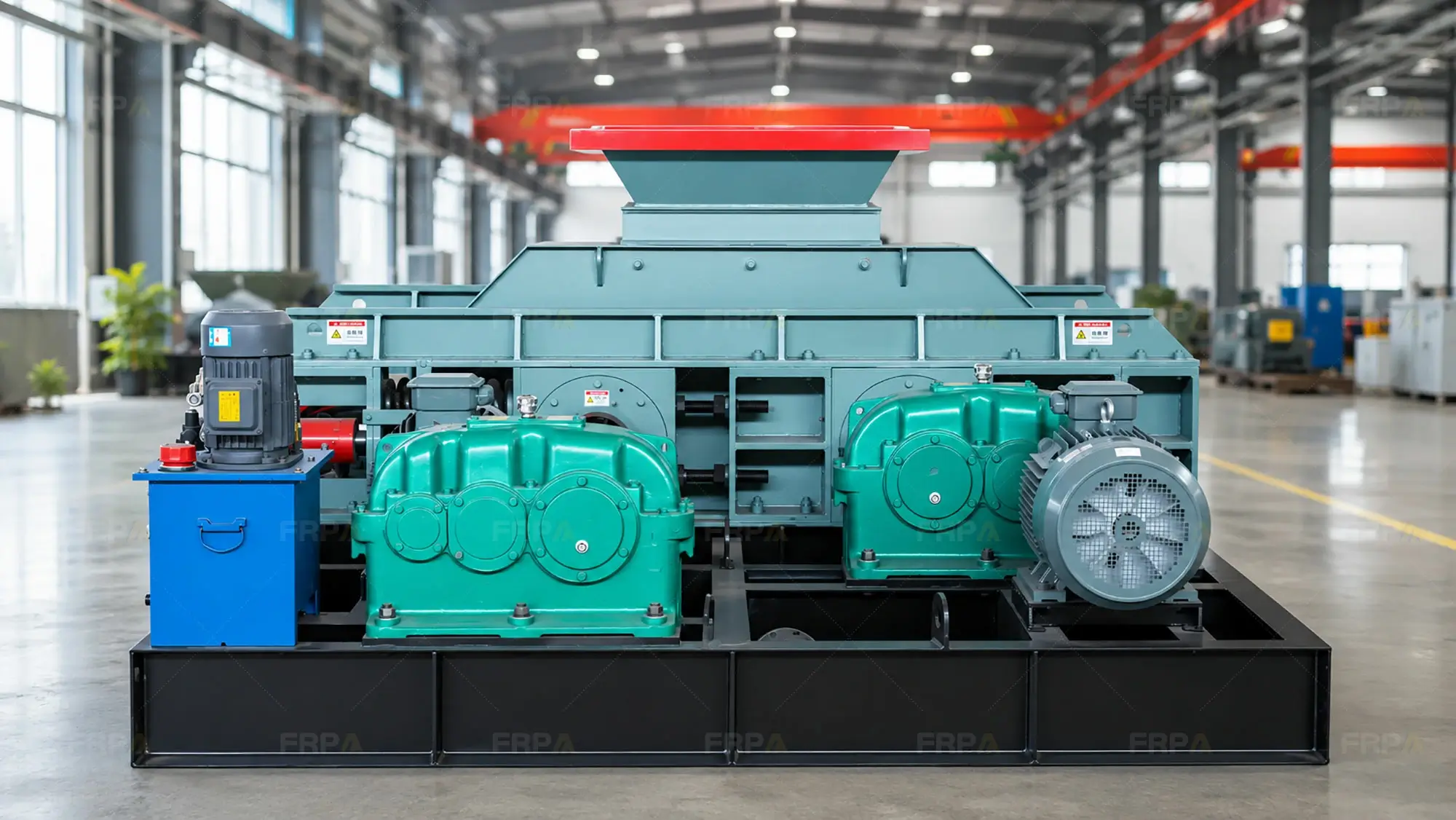

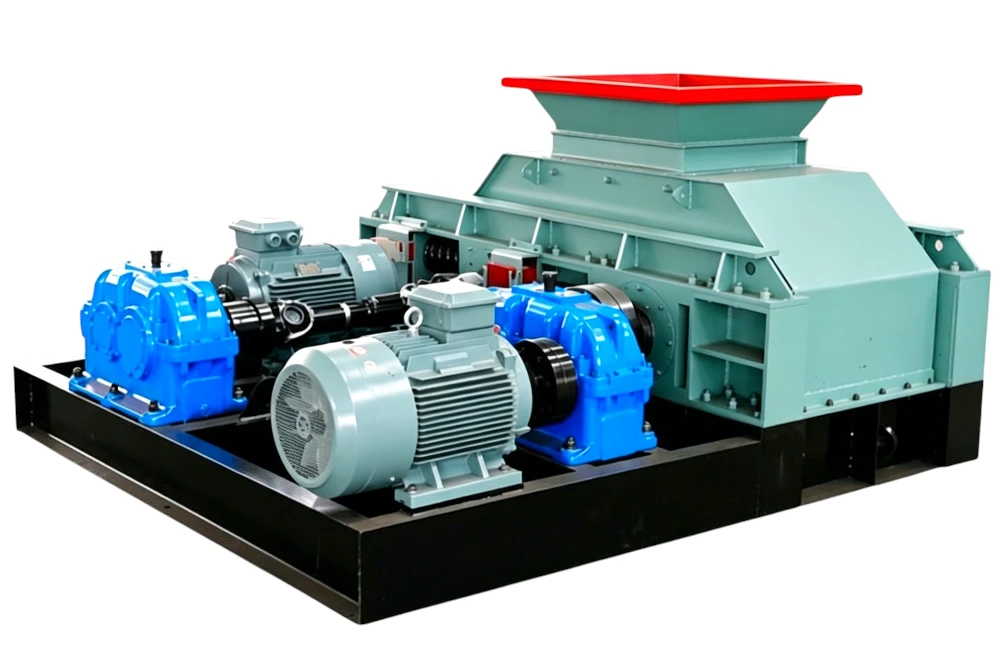

The Roller Crusher is a specialized compression-type machine designed for the medium and fine crushing of moderate-hardness materials. By utilizing two counter-rotating rollers, it delivers a high-torque squeeze that ensures a uniform product size while significantly minimizing the generation of unwanted fines (dust).

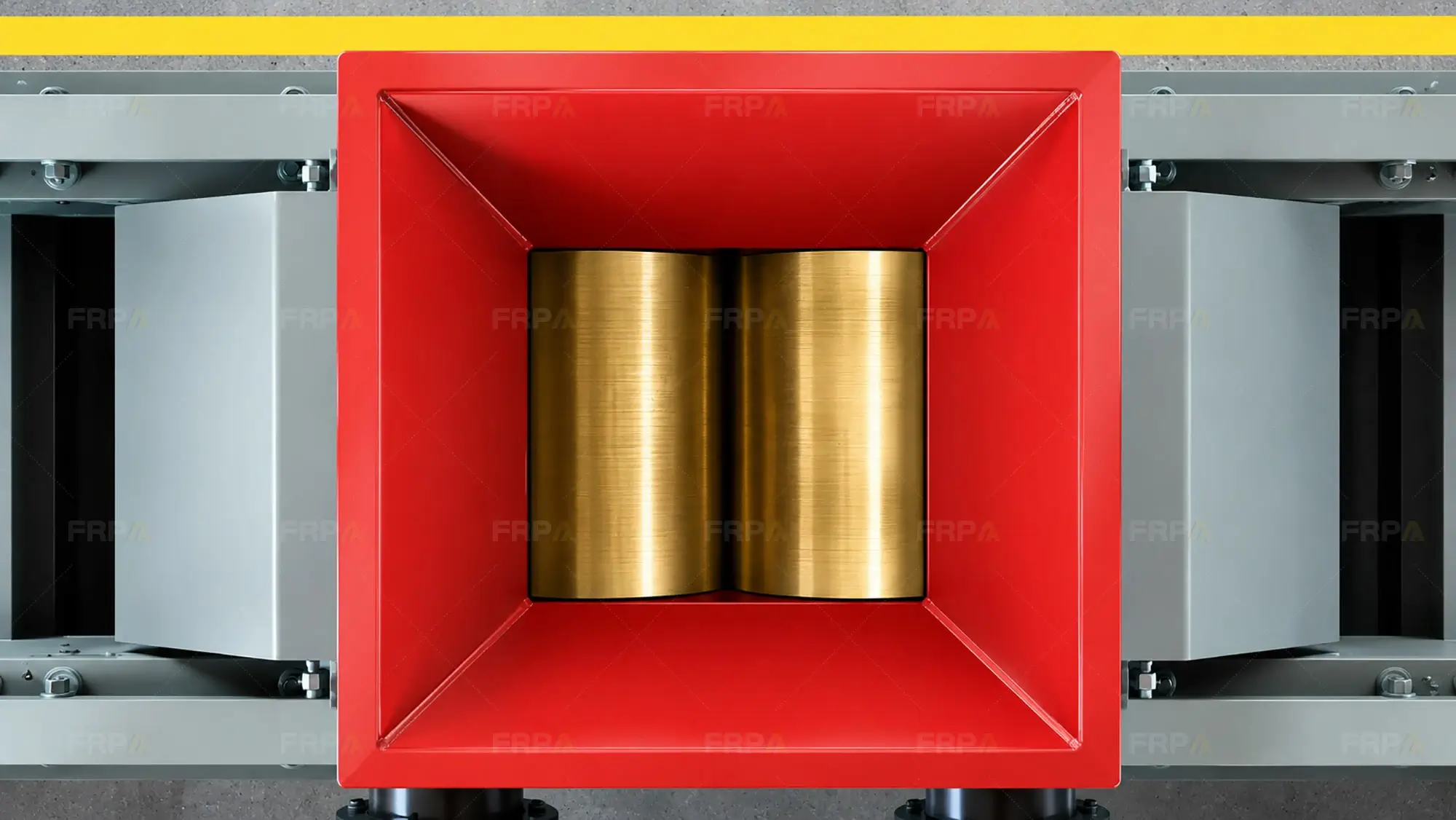

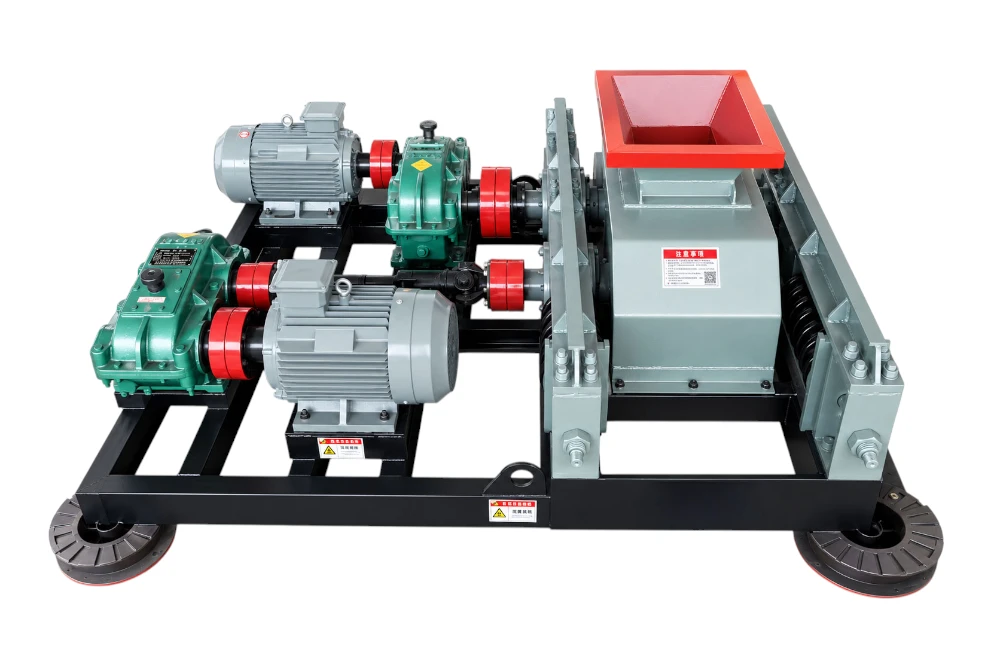

The roll crusher operates through a combination of compression and shear. The drive system powers two heavy-duty rolls rotating in opposite directions, drawing the feed material continuously into the crushing zone through friction. The material is reduced along its natural fracture planes by the compressive and shear forces generated between the rolls. Once the target size is reached, the crushed material passes through the preset roll gap, minimizing unnecessary re-crushing and fines generation. The roll gap can be adjusted to meet specific product size requirements.
Energy & Coal: Sizing of coal, coke, and lignite with minimal dust loss.
Industrial Minerals: Crushing of limestone, gypsum, clay, and phosphate rock.
Metallurgy: Fine crushing of iron ore, manganese ore, barite ore, fluorite ore, and non-ferrous metal slags.
Construction: Production of specialized aggregates where specific grading is required.
The defining feature of the FRP Roller Crusher is its ability to maintain a consistent output even when feed characteristics fluctuate. Whether configured with Smooth Rollers (for fine sizing) or Toothed Rollers (for coarser reduction), the equipment is engineered for stability. The heavy-duty housing and oversized bearings are designed to absorb the constant radial loads of high-pressure crushing, ensuring the roller gap remains constant throughout the production shift.
Compression between fixed and moving jaw
Compression between two counter-rotating rolls
High-speed hammers impact and shear
Hard abrasive rock (granite, basalt)
Sticky moist materials (coal, clay)
Medium-hard brittle materials
Moderate
Very low
High
FAQ for Roller Crusher
To receive a technical quote for our Roller Crusher series, please provide:
*Material Type & Hardness: (e.g., Coal, Limestone, Slag) *Max Feed Size: (mm) *Required Discharge Range: (e.g., 0-5mm, 3-8mm) *Hourly Capacity: (tph) *Moisture Content: (%)
