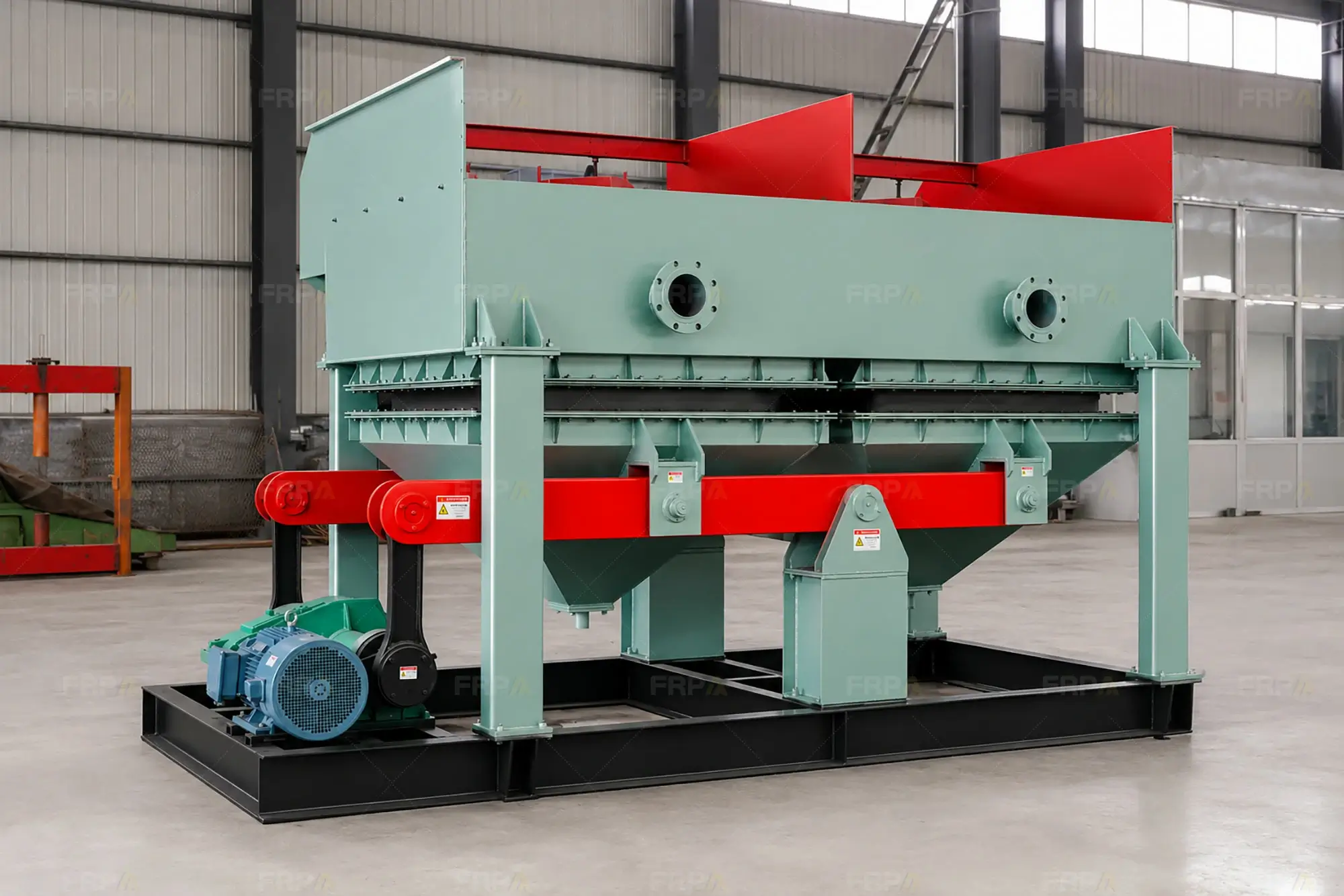

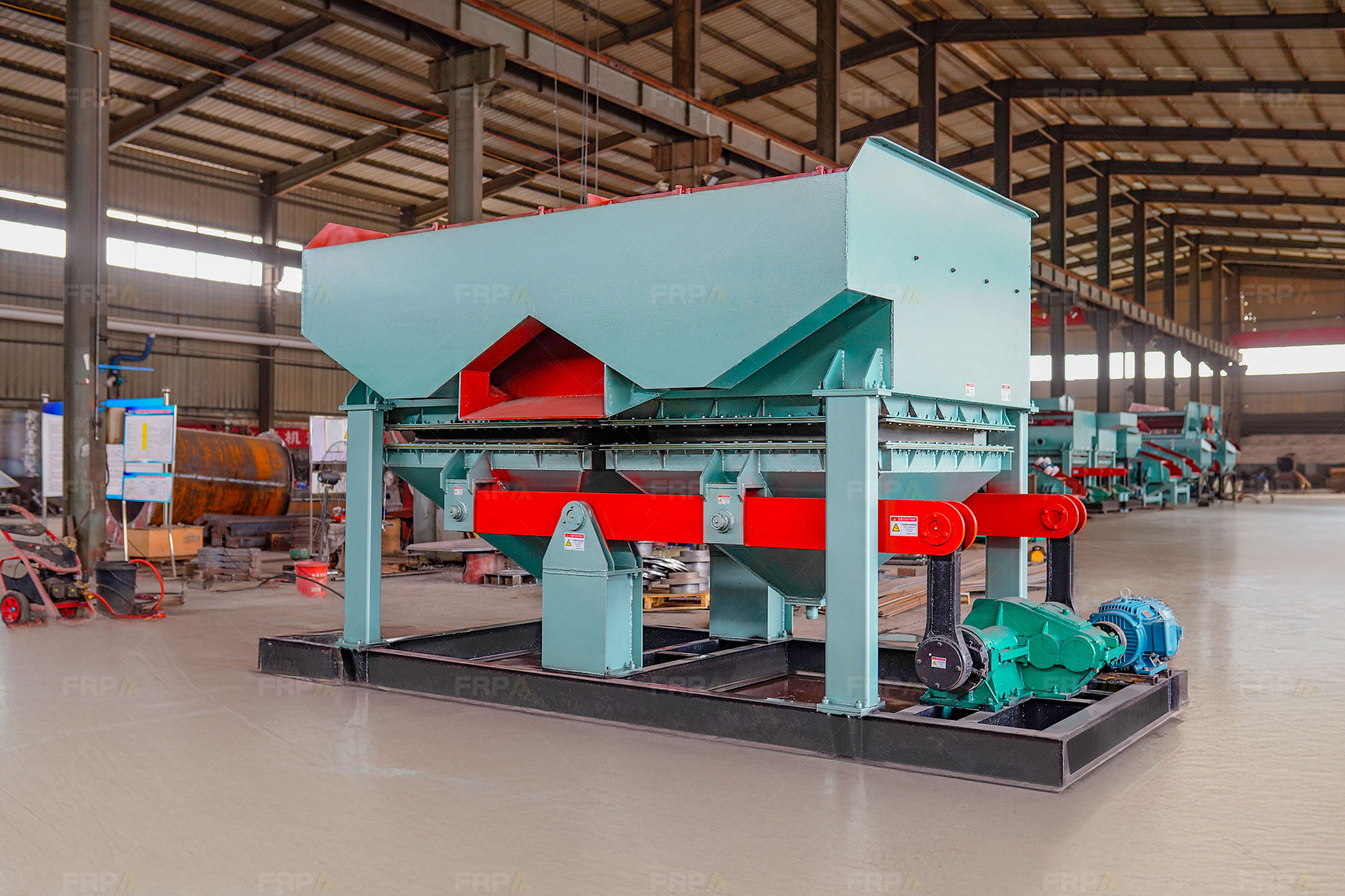

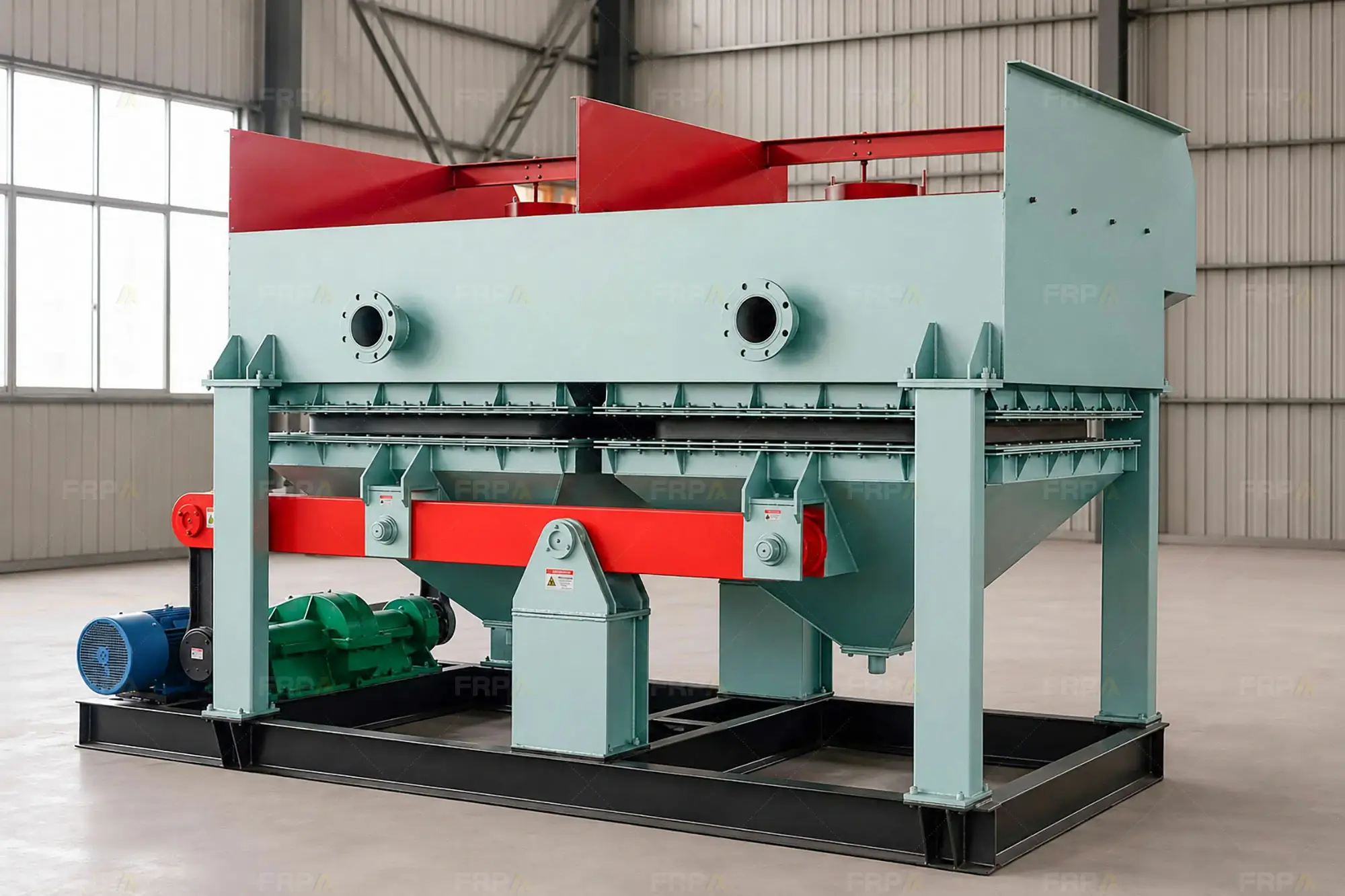

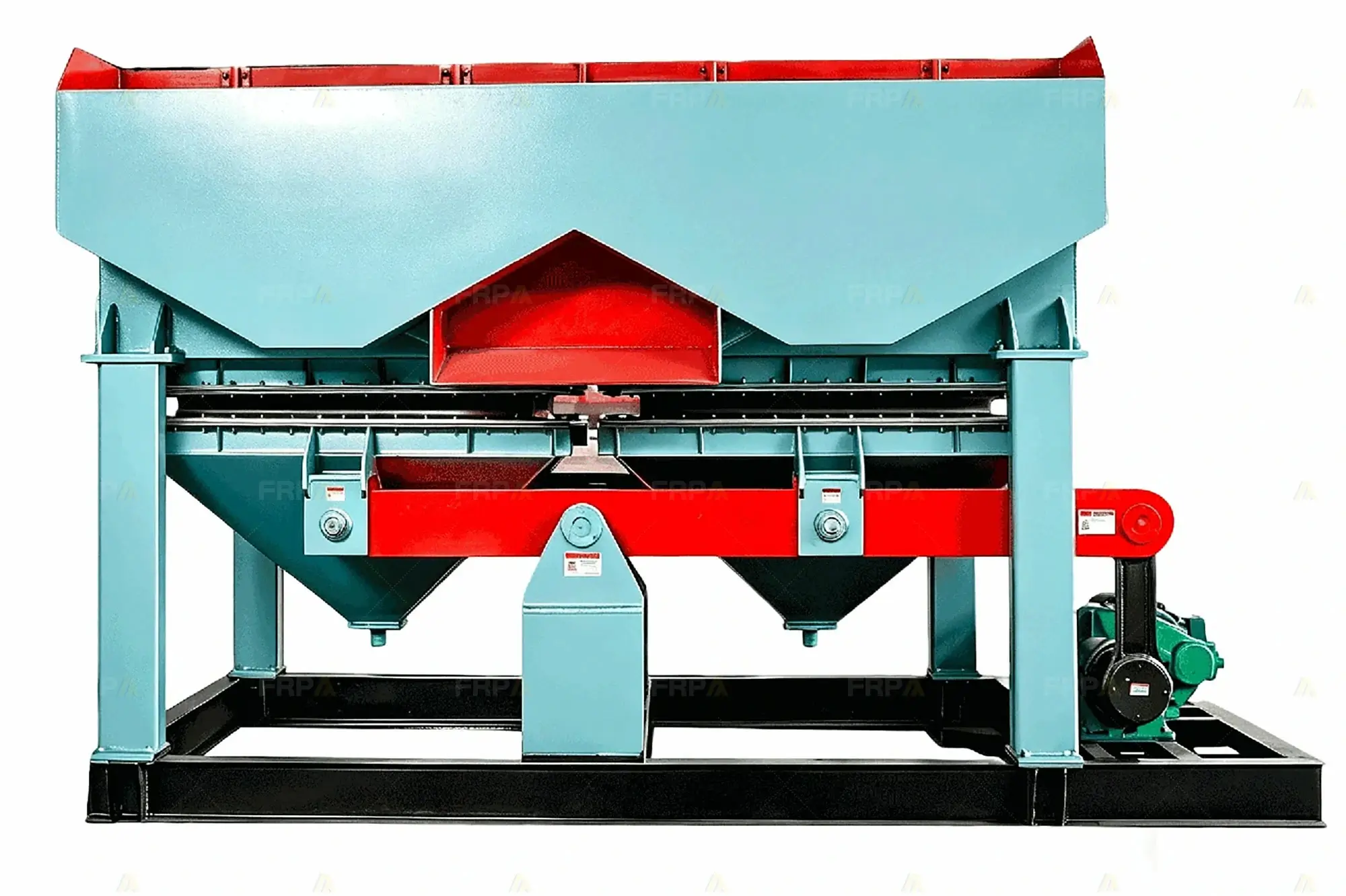

The FRT Series Jig Machine is a heavy-duty gravity separation equipment developed for the beneficiation of coarse mineral particles. Based on the operating principles of conventional under-bed jigs and compound jigs, the FRT series has been optimized to provide higher pulsation intensity, a wider stroke range, and greater processing capacity.
With a maximum feed size of up to 50 mm and a processing capacity of up to 60 t/h, the FRT series is particularly suitable for medium and large-scale mineral processing plants handling coarse heavy minerals. The machine has been successfully applied in the beneficiation of manganese ore, specularite, barite, and other minerals where gravity separation is effective.
At FRP, reliability is far more than a mere marketing slogan.
It serves as the starting point for our equipment design, the criterion for selecting core components, and the principle guiding our full service system.
For over two decades, we have dedicated ourselves to jigging separation technology and obtained six core patents. Our jigging machines have been operating steadily for years across hundreds of mining and smelting slag recovery projects worldwide. Their performance has been fully tested not in laboratories, but in real industrial working conditions by every single unit in the field.
Backed by our field-proven quality, we offer a three-year full-machine warranty that exceeds the industry standard. This fully demonstrates our confidence in the quality and long-term operational stability of our equipment.
We manufacture premium equipment built for continuous production and harsh on-site conditions, and strive to be your reliable long-term engineering partner.
FAQ for FRT jig concentrator
We don't just deliver machines — we deliver assurance.
From installation to long-term service, we're by your side with ongoing support to keep your equipment running at its best.
| Model | Stroke Coefficient | Stroke (mm) | Stroke Frequency (r/min) | Feed Size (mm) | Capacity (t/h) | Water Consumption (t/h) | Power (kW) |
|---|---|---|---|---|---|---|---|
| FRT16-2 | 0.9 | 0-90 | 0-200 | 0-50 | 40-60 | 200 | 18.5 |
Note: Specifications are subject to change without notice due to ongoing product improvement.
